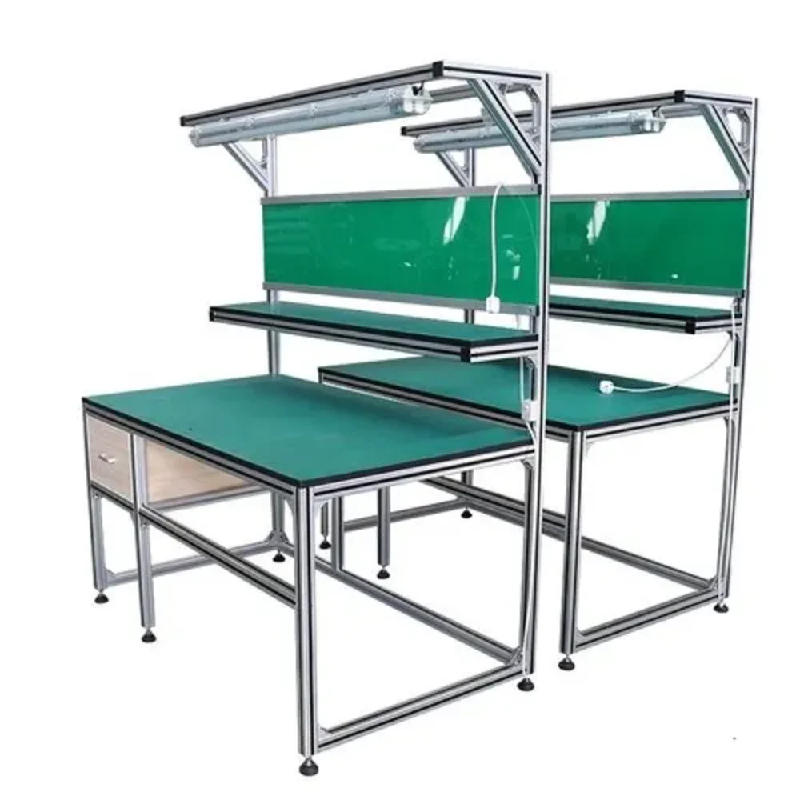

An ESD (Electrostatic Discharge) workstation is a specially designed workbench or table for handling electrostatic-sensitive electronic components safely. It ensures static charge is safely dissipated to ground, protecting delicate parts like PCBs, chips, and other electronics
Work surfaces have a controlled resistance (typically in the 10⁶–10⁹ ohm range) to slowly bleed off charge.
Table ground lugs / grounding bars
Wrist strap jacks / ground cords to safely connect operator or tools
ESD mats, wrist straps, ionizers
Shelves, tool rails, drawers, lighting
Layout design considers grounding, mats, wrist straps, and ESD floor
Work surfaces have a controlled resistance (typically in the 10⁶–10⁹ ohm range) to slowly bleed off charge.
Table ground lugs / grounding bars
Wrist strap jacks / ground cords to safely connect operator or tools
ESD mats, wrist straps, ionizers
Shelves, tool rails, drawers, lighting
Layout design considers grounding, mats, wrist straps, and ESD floor
