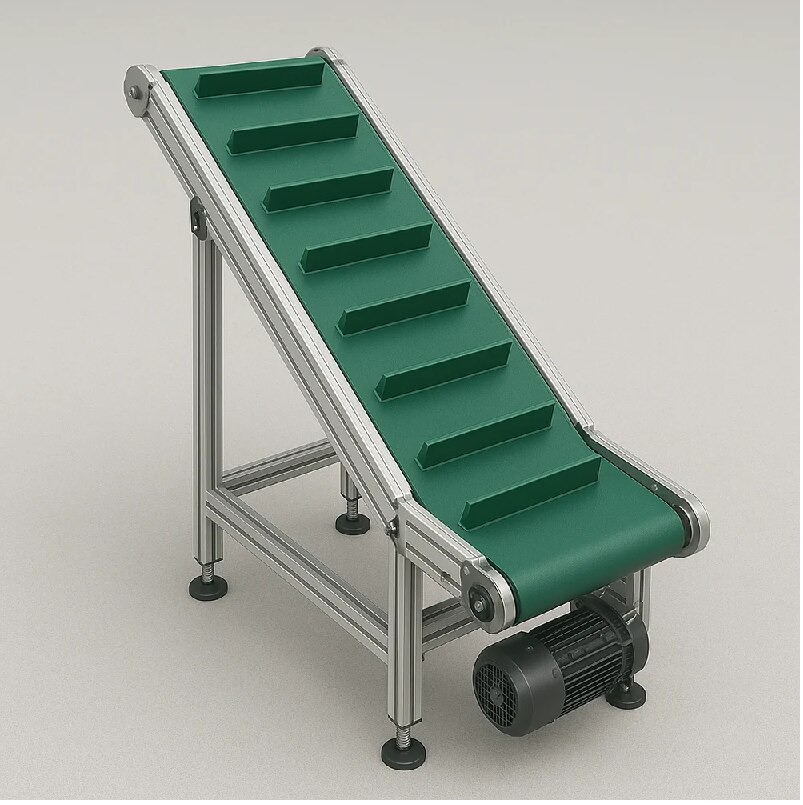

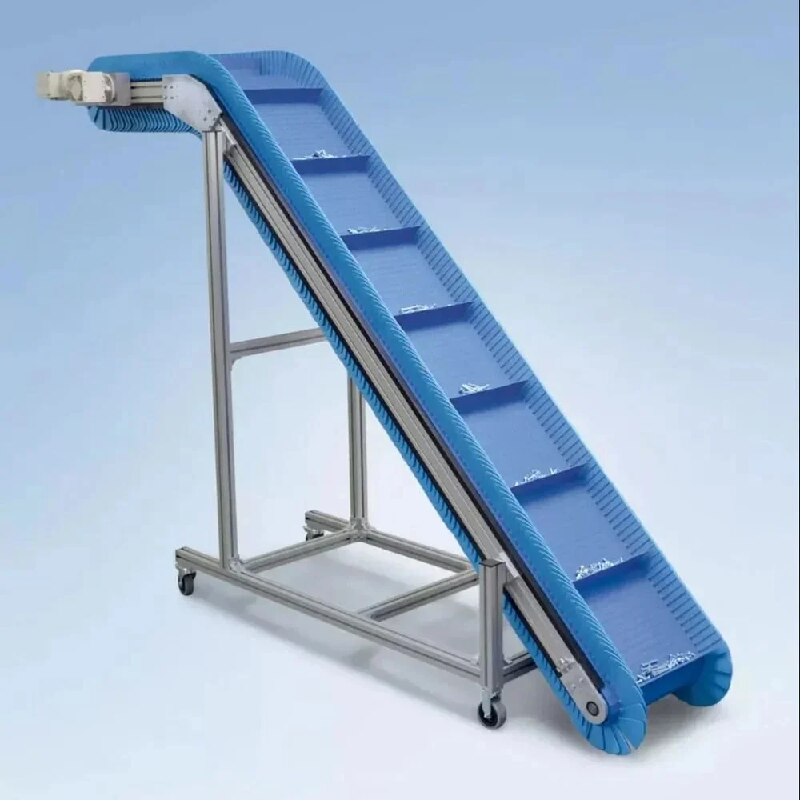

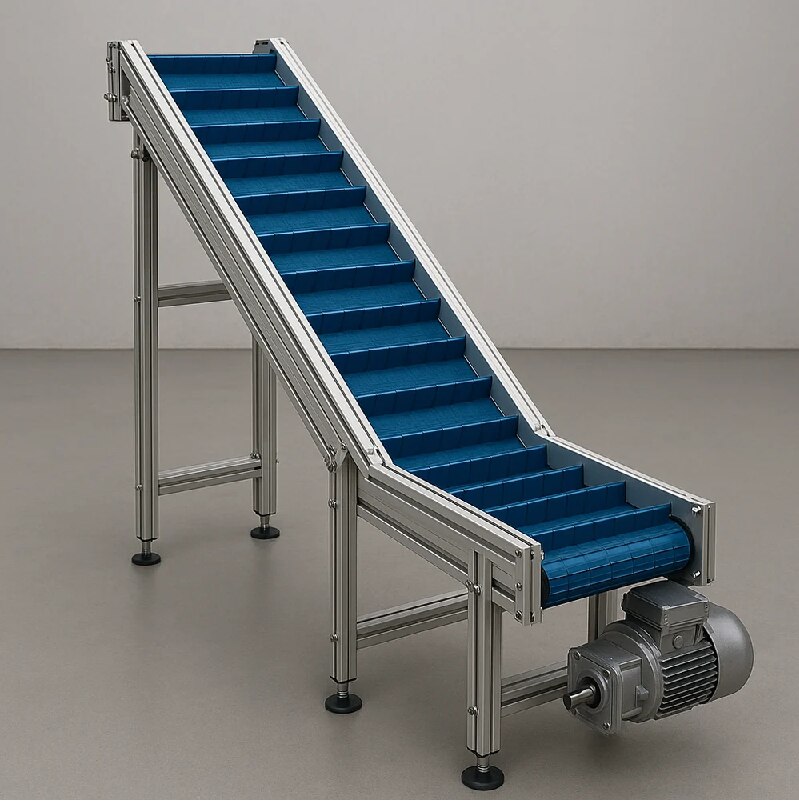

500kg PVC Cleated Belt Conveyor

A PVC Profile Cleated Belt Conveyor is a specialized material handling solution used for transporting products vertically or at steep inclines. It uses a belt fitted with cleats (raised sections) to hold products in place, preventing them from sliding backward during movement.

Key Components & Structure:

• Frame:

Made from aluminium profile sections, typically T-slot extrusions (e.g., 40x40mm, 45x90mm). These are lightweight, corrosion-resistant, and allow for modular adjustments or attachment of accessories.

• Belt:

o Material: PVC, PU, or Rubber

o Cleats: Molded or welded cleats (in L, T, or V shapes), available in different heights (typically 20mm to 100mm)

o Cleat spacing is customizable based on product size and incline angle

• Drive System:

o Powered by AC or DC geared motors

o Variable frequency drives (VFD) can be used for speed control

o Drive unit can be mounted at the head, tail, or center

• Support Structure:

Adjustable aluminium legs with anti-vibration leveling feet

Option for mobile version with lockable castor wheels

• Guiding & Sidewalls:

Optional side guides to prevent spillage

Additional sidewalls can be integrated with the belt for added containment

Advantages:

• Modular & Flexible: Easy to modify or expand with other components (bins, sensors, hoppers)

• Space-Saving: Ideal for inclined or vertical conveying where space is limited

• Gentle Handling: Suitable for fragile items or components

• Low Maintenance: Corrosion-free aluminium frame and durable belt

Typical Applications:

• Elevating small parts in assembly lines

• Transporting packaged goods in food, pharma, and cosmetic industries

• Handling loose components in automotive or electronics manufacturing

• Feeding material to sorting or packing stations
