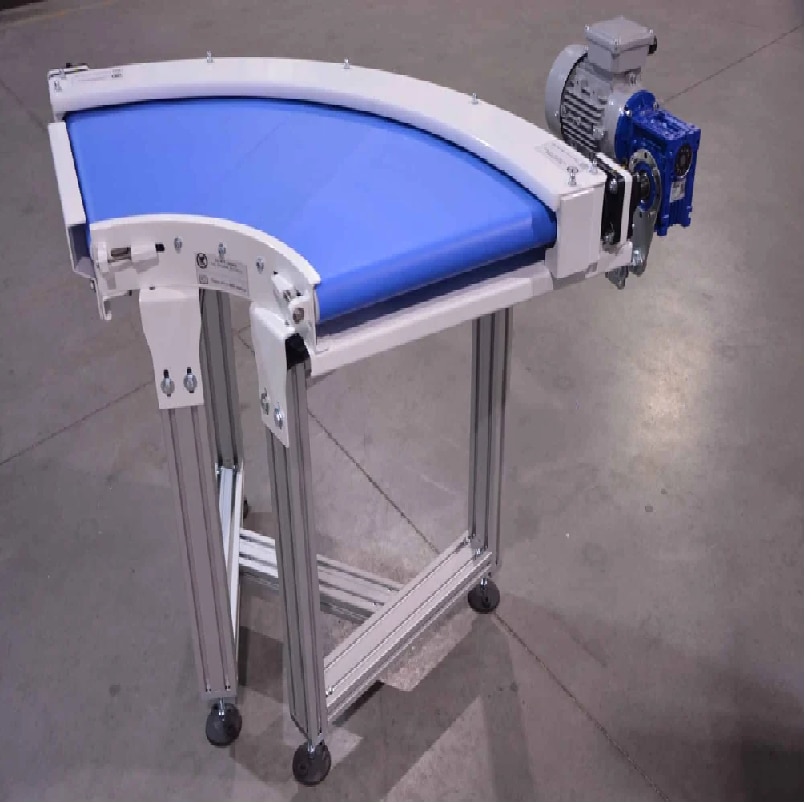

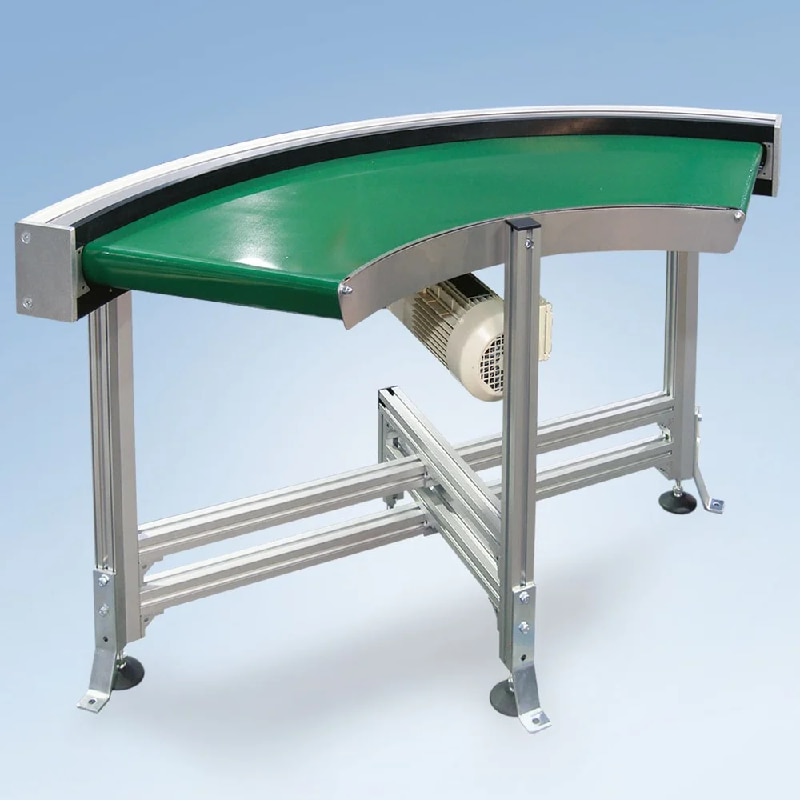

500kg PVC Curve Belt Conveyor

PVC Curve Belt Conveyor is a type of conveyor system designed to transport materials along a curved path using a continuous belt. These conveyors are ideal for applications where layout constraints or material flow direction changes require a smooth transition without stopping or reorienting the product.

Key Features:

• Curved Frame Design:

o Allows the belt to follow a radius (commonly 30°, 45°, 60°, 90°, or 180°)

o Enables seamless directional changes in material flow

• Belt Material:

o PVC, PU, or rubber belts depending on application

o Can be smooth, textured, or with sidewalls and cleats

• Frame Construction:

o Typically made of stainless steel, aluminium, or powder-coated mild steel

o Can be modular and easily integrated with straight conveyors

• Drive System:

o Motorized pulley or geared motor for consistent belt movement

o Placed outside or underneath the curve for compact design

• Support and Rollers:

o Special conical rollers or segmented belt guides ensure smooth belt tracking around the curve

Common Applications:

• Food and Beverage Industry

• Packaging and Sorting Lines

• Airport Baggage Handling

• Logistics and Warehousing

• Pharmaceutical and Cosmetic Lines

Advantages:

• Space Optimization:

o Allows layout flexibility in tight or irregular spaces

• Continuous Flow:

o Maintains consistent product orientation and spacing through curves

• Customizable:

o Available in various belt widths, angles, and radii

o Can include side guards, sensors, and speed controls

• Quiet and Smooth Operation:

o Reduces product impact and noise levels
