75kg PVC PCB Assembly Conveyors

Product Details

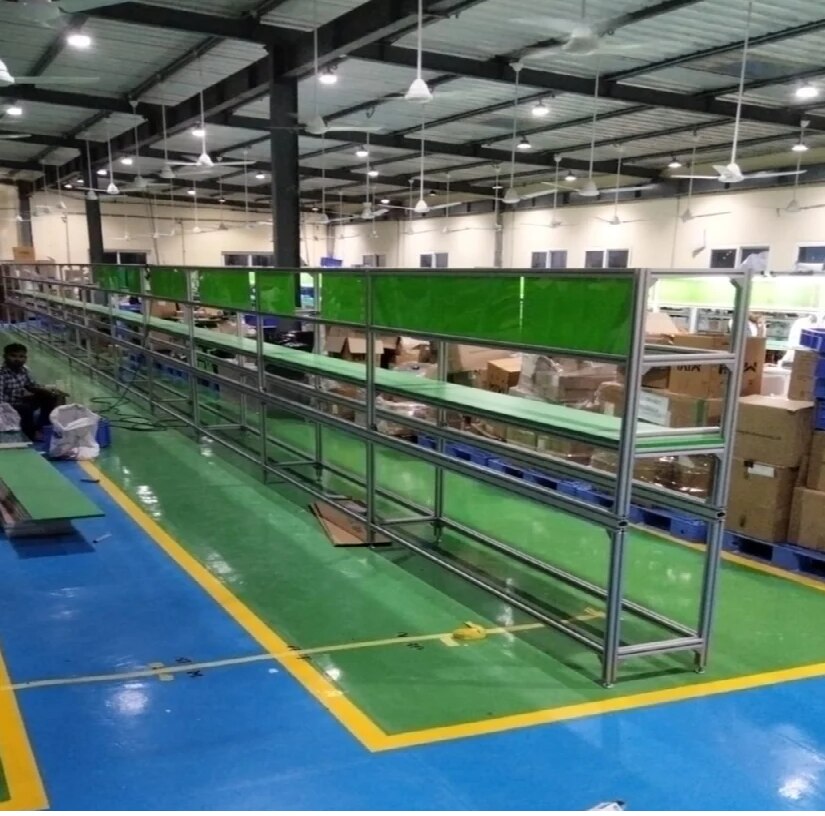

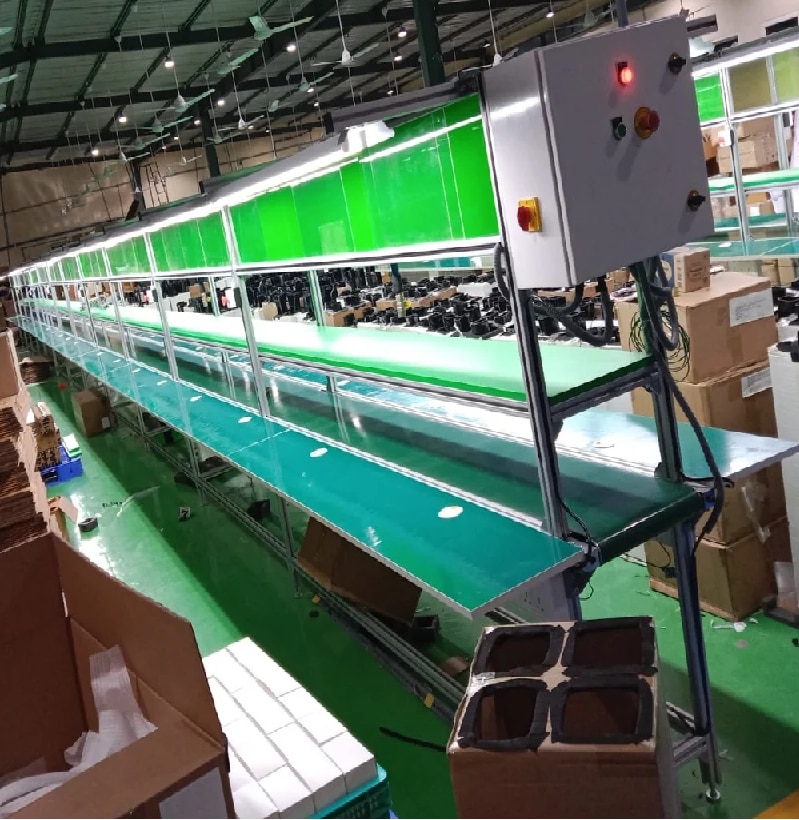

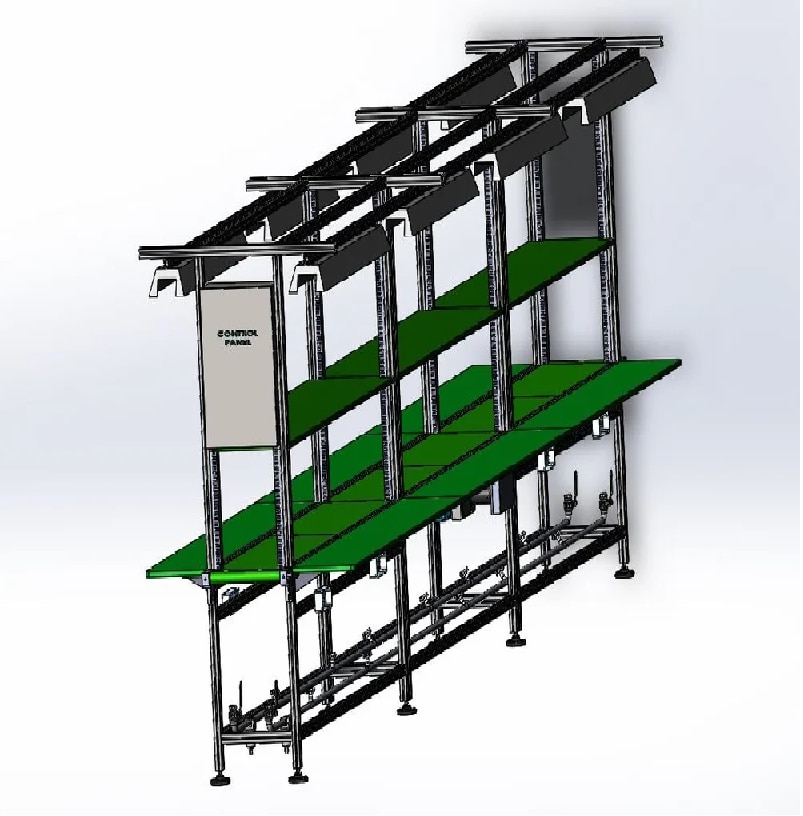

A PVC Industrial PCB Assembly Line Conveyor is a precision-engineered material handling system designed specifically for transporting printed circuit boards (PCBs) during electronic assembly processes. Built using modular aluminium profiles, it ensures flexibility, durability, and ESD safety.

Key Features:

• Aluminium Frame: Lightweight, rust-free, and easy to configure for different line layouts (straight, L-shape, U-shape).

• ESD-Safe Design: Includes conductive belts, rollers, and grounding systems to protect sensitive PCBs from electrostatic discharge.

• Adjustable Width: Side rails or edge conveyors can be adjusted to accommodate various PCB sizes.

• Smooth Transport: Uses timing belts, flat belts, or edge belts for accurate and gentle PCB movement.

• Integration Friendly: Compatible with soldering machines, pick-and-place units, inspection stations, and buffer units.

Additional Options:

• Manual or motorized width adjustment

• Cooling fans or overhead lighting

• Workstation shelves and tool racks

• Stopper, lifter, or indexing systems

Applications:

• SMT (Surface Mount Technology) assembly lines

• Through-hole PCB assembly

• PCB testing and inspection

• Reflow oven infeed/outfeed lines

Advantages:

• ESD protection ensures component safety

• Modular setup reduces downtime and allows easy reconfiguration

• Clean, modern design ideal for controlled environments

• Enhances efficiency, consistency, and production speed

This type of conveyor is essential for modern electronics manufacturing, ensuring precise, safe, and reliable PCB handling throughout the assembly process.
