Aluminium Profile ESD Rack

Aluminium Profile ESD Rack is a modular and anti-static storage system designed to safely store sensitive electronic components in environments where Electrostatic Discharge (ESD) control is critical. It is widely used in electronics assembly lines, clean rooms, R&D labs, and ESD-safe work areas.

Key Features:

1. Material & Frame:

o Constructed using T-slot aluminium profiles (typically 30x30mm or 40x40mm).

o Lightweight yet structurally strong.

o Resistant to corrosion and suitable for cleanroom environments.

o Easy to assemble and reconfigure.

2. ESD Protection:

o Integrated with ESD-safe materials, such as conductive shelves and bonding elements.

o Ensures grounding continuity throughout the structure to dissipate static charges safely.

o Often includes grounding cords or connection points to the facility’s ESD system.

3. Shelves:

o Multiple levels (e.g., 3 to 6 stages) for efficient organization.

o Shelves made from conductive laminates, ESD-coated steel, or ESD mats.

o Adjustable height and spacing to accommodate various component sizes.

4. Design Variants:

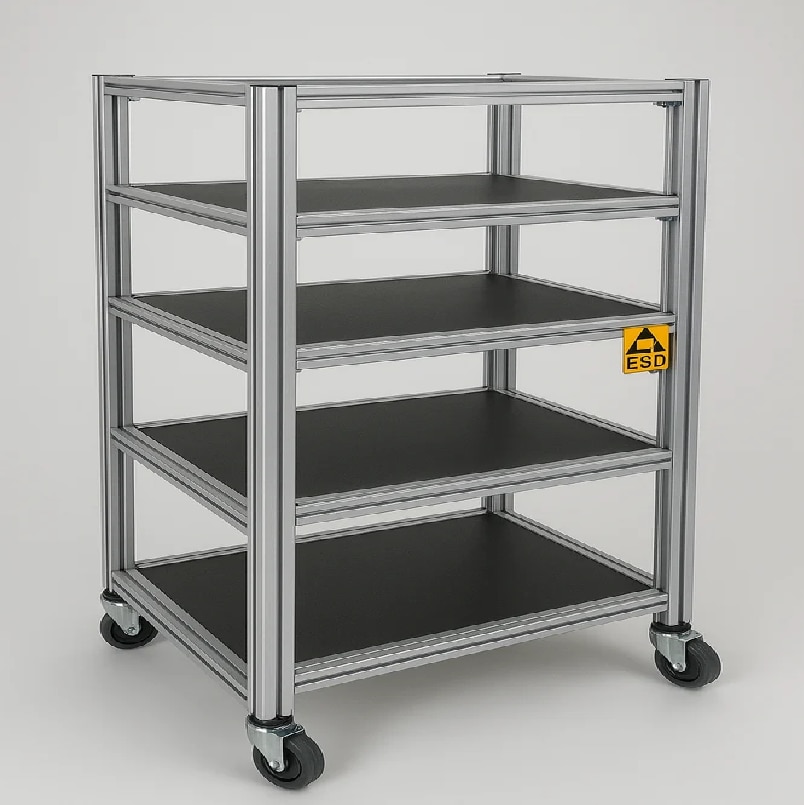

o Mobile racks with ESD caster wheels or fixed types with leveling feet.

o Optional side panels, back panels, or bin rails.

o Can include label holders, dividers, or storage bins.

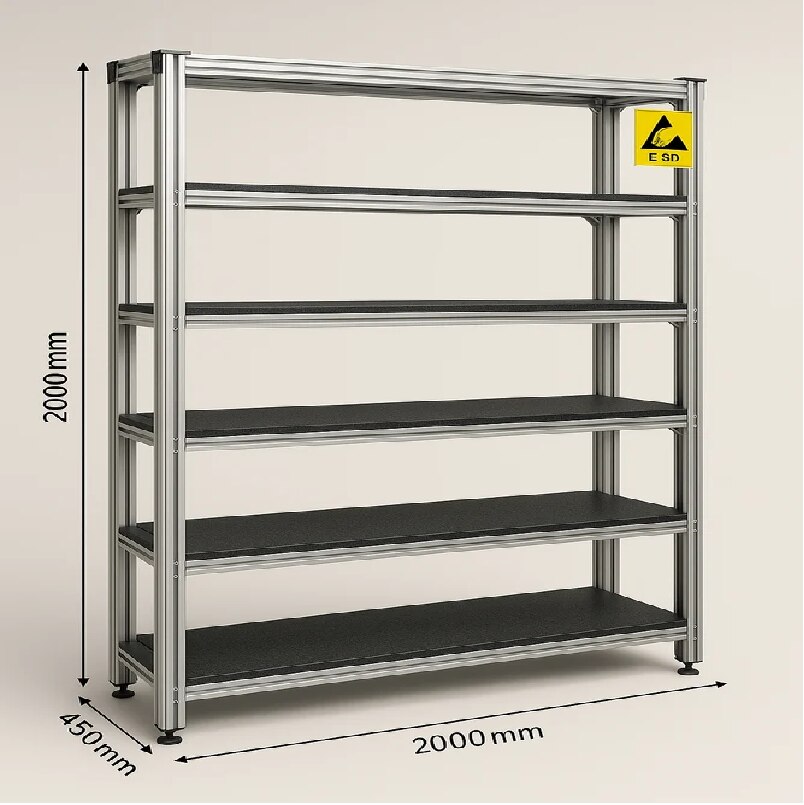

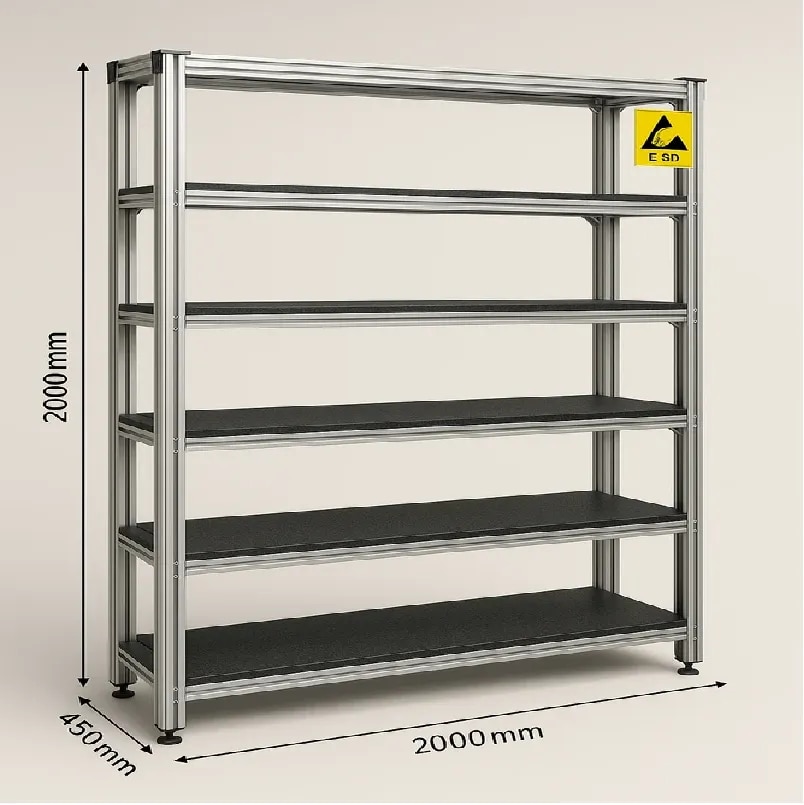

5. Typical Dimensions (example):

o Length: 2000mm

o Width: 450mm

o Height: 2000mm

o Load Capacity: ~100–150kg per shelf (varies by design)

6. Applications:

o PCB storage

o Tool organization

o Component kitting

o Intermediate storage in ESD zones

Advantages:

• Fast assembly and modular flexibility

• Long lifespan with minimal maintenance

• Compliant with international ESD safety standards

• Scalable design suited for growing workspace needs
